Stacker cranes: existing types and when to choose them

Stacker cranes are a great asset in the world of logistics because they help automate the operating cycle. They are the backbone of automated warehouses, thanks to which many companies are able to improve performance, speed up the handling of goods and increase their productivity.

Stacker cranes are machines used to automatically store and pick various types of goods such as pallets, boxes, containers, tyres. They are robots and, thanks to control systems integrated into them and warehouse management software, stacker cranes are able to execute all commands given to them.

These machines are programmed to store products automatically at the pre-determined location, guaranteeing error-proof and low-cost work. Stacker crane operated warehouses can be over 150 metres long and up to a maximum of 45 metres high.

What does a stacker crane consist of and how does it move?

• By a mobile frame that moves by means of belts, chains or supporting ropes, along a vertical structure and within an aisle, typically bounded by two racks;
• The vertical structure actually consists of one or more columns in turn anchored to a beam running along a rail on two supporting wheels, one driving and one driven. In some cases, machines with several driving wheels are designed for high-performance machines;
• There are contrast wheels at the top that keep the sideshifter upright.

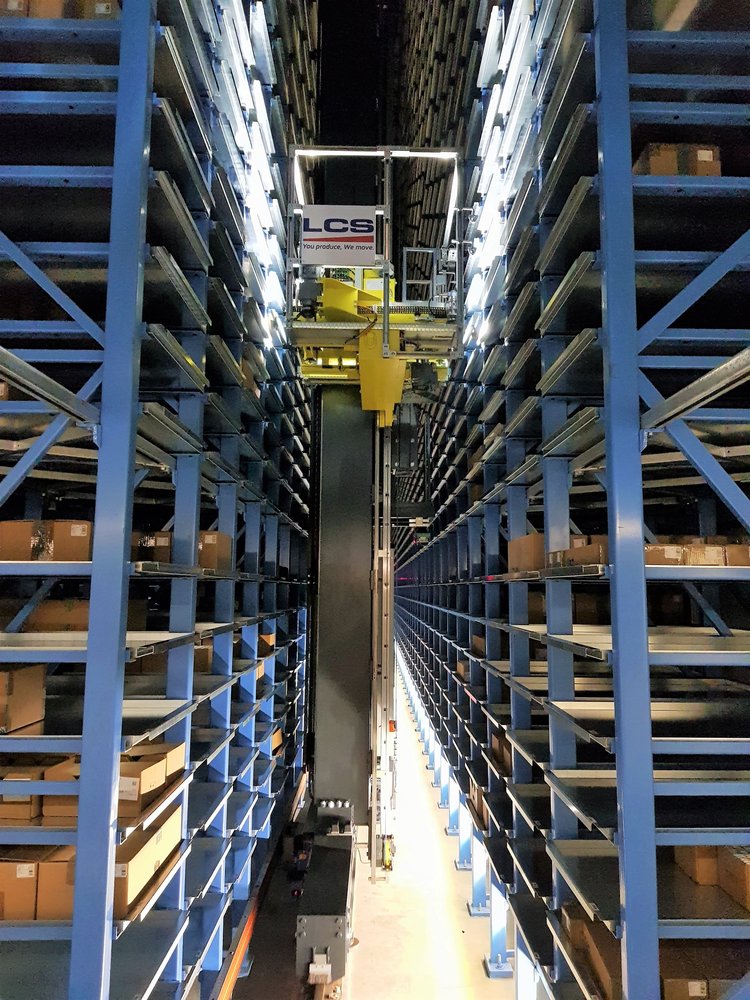

Depending on the goods to be handled, there are different types of stacker cranes: stacker cranes for pallets or for larger and heavier goods, and miniloads, for handling lighter and smaller loads.

In addition, they can handle single- or double-deep and multiple-deep warehouses, i.e. with a variable number of containers per side.

Stacker cranes for pallet

Stacker cranes for pallet are designed for the automatic storage and pick of pallets, boxes and other bulky loads. They move along aisles according to the commands of specific software that allows an operator to manage them.

The dimensions of the pallet stacker cranes can reach a height of 45 metres in their self-supporting warehouse version, with load capacities of over 10 tonnes.

The strengths of automatic stacker cranes include:

• the precise automation of pallet entry and exit,
• improving the management of inventories by constantly updating them,
• the elimination of errors typical of manual operations,
• the speed of picking, regardless of unit size,
• the guarantee for operators to work in complete safety,
• the possibility of being equipped with mechanisms for recovering energy during braking
• their energy efficiency,
• the versatility, which allows them to adapt to almost all types of goods and different temperatures, even as low as -35 °C in a cold store.

There are two main types of pallet stacker cranes: single-column and double-column.

Single-column stacker cranes

Single-column pallet stacker cranes, as the name suggests, consist of a single column and are most suitable for warehouses with lighter loads. In this sense, we can indicate an ideal pallet weight of between 1,000 and 1,500 kg.

Double-column stacker cranes

In this type of stacker crane, the structure with two vertical columns corresponds to an elevation cradle in the centre, which allows access to all storage levels. As double-column stacker cranes are stronger than single-mast cranes, they are well suited to handling heavy or bulky loads.
